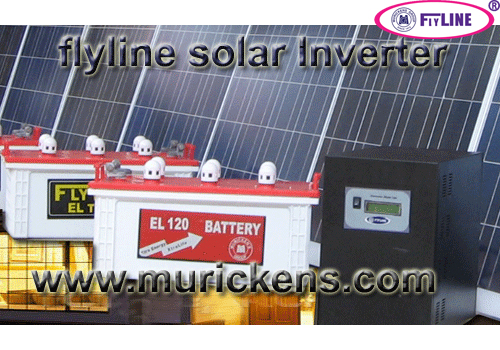

FLYLINE SOLAR HYBRID INVERTER

Solar Hybrid Inverters of Murickens are conquering the Kerala market since 2000 as the the electricity produced in the panel from dawn to dusk can directly be used to mobilise the equipments connected to the inverter. Our solar hybrid inverter is most efficient in performance and lowest in price. Built in charger controllers are zero drop with maximum power converting unit and at night the battery back up can be used. Solar inverters are ISO approved and ever since our istallation in 2000 we have done thousands


of solar power units in many parts of the country including Kerala Agriculture Research University, Malapuram, The CISF 7th battalion military camp,Hyderabad, Interational Airport, Karipoor, Govt. of India, Dept. of Space, Sreeharikotta, Central Marine Fisheries Research Institute, Cochin, Vallarpadam Container Terminal (IGTPL) etc in addition to a large number of well established organisations in the private sector and it is most important that the installation should be undertaken by a well experienced and qualified technical expert to get 100% output of the system and to avoid unnecessary expenses and unpleasant outcomes.

Flyline Solar Hybrid Inverter Features

►Flyline pure sine wave solar system is a solar charged automatic inverter that can be used for lighting up a house in addition to powering the computers and other electronic equipments that need uninterrupted power supply. ► Separate mains ON/OFF charger switch. ► Works with the power of solar power/AC power (KSEB line), the best way to save money and nation by using natural resource. ► Provision for connecting KSEB current and solar power. ► Attractive Designs. ►Pollution free type. ► Single Switch Operation. ►DSP based very low component cost design. ► Single sided PCB, easy to assemble without any SMD components. ► Auto resetting. ► Protection from lightning, high/Low Voltage Trip. ► Overload Protection. ► Over Charge and Deep Discharge cut off. ► Independent Digital display for Solar or KSEB charging voltage, main voltage, inverter voltage, load etc.► Solar charger LCD display-panel voltage , battery voltage, out current, solar in use, direct mains, saved unit - only 36 and above volt system. , ,► Audio and Visual Indicators. ► Can be connected to the existing wiring. ► Bridge type center aligned switching MOSFET based topology. ► No husking sound. ► It is a fully automatic built-in charging control system, no need of any manpower. ►The Special feature of the system is when the battery is full and there is sufficient sunlight the system will automatically cut the main line off (KSEB Line) and connect the solar system. This feature is applicable only if you use the recommended capacity of solar panel and solar inverter. ► The main advantage of our built in solar charger is floating type and once it fully charges the battery, it goes to trickle charging. This will provide more battery life and can utilize 100 % efficiency of solar panel power. ►The first preference is for solar charging and when the battery is low and there is no sufficient sunlight, there is an option for manual or automatic grid charging through separate switch. ►ISO: 9001 -2008 Certified solar power conditioner.►An ideal unit for part time power supply with low investment.

FLYLINE HYBRID SOLAR PCU WORKING MECHANISM

System priority Stage: - solar-battery-grid 1) When solar energy is sufficient total out put load will operate on solar Inverter. Excess solar power will charge batteries. 2) When solar energy is weak then inverter will take DC source from batteries to compensate the out put load. 3) When the battery discharge level reaches 11.2 volt or below, the out put load is shifted to grid and the battries are charged with the help of solar power only. 4) At Day time when each battery becomes 13.5 v the output load again shift to solar Inverter. 5) In 48 and above DC volt system of solar inverter - At night or when there is no sunlight the batteries reach 70% discharge level (30 % kept as a buffer) the out put load is shifted to grid without any change over time. (Each battery discharging level becomes 1.5 v ) 6) In 12 and 24 volt DC system of solar inverter - At night or when there is no sunlight, the out put load is shifted to grid and the battery back-up is used only when there is a grid failure. 7) After shifting the load to grid there is an optional on –off switch ( manual ) to charge the battery from grid up to 13.5 volt . 8) At night During changeover of load from battery backup to grid supply (i.e 70 % battery discharged) and if grid supply is absent then load is shifted to solar inverter to use buffer battery backup (i.e balance 30 %) 9) By using solar power the solar charger high cut-off is 14.5 V of each battery.

SL.No. Parameter Single Phase Unit
1 Rating 650 VA to 5000 V A
2 Input Voltage Range 180V-270 AC or Solar power 12,24,36 or 48V
3 Normal Output Voltage 230V AC
4 Output Frequency 50 Hz ± 1 %
5 Input Frequency 45 - 55
6 Power Factor -0.8 Lagging to unit
7 Efficiency 95%
8 Control Digital/Analogue
9 Winding Copper Wires
10 Wave Form Pure Sine Wave
11 Mounting Free Free
12 Compact in size, Can work on Generators
13 Charging - AC or Solar Power Floating type & Trickle charging.
14 Noise Low Noise <50db
15 Battery 12, 24 or 48 V
16 Heat

< 50° C

Available in the range 650VA, 1000VA 1300VA, 2000VA 3000VA and 5000 VA and stand along system is up to 100 KVA.

Price of the Solar inverter is depend up on quality ,capacity/power of inverter, capacity of battery, type and watts of solar panel we use. Over all cost is based on back-up of solar power we needed.

More Details Of Flyline Solar Hybrid Inverter :-Click Here

Flyline Solar Panel Details And Specifications :-Click here

Flyline Solar Battery Specifications and details :-Click Here

Flyline Solar Hybrid Inverter Picture :  Click

ENQUIRY
Watts of some electronic products we use :- Click Here

Flyline Solar power plant installation video of MG Marketing System:-  Click Here

Some of our GOVT clients list :-Click Now

Murickes BrouchureClick Here

For quick response & order-call ( 91) 09400464444,  09447366779, 08281848484
